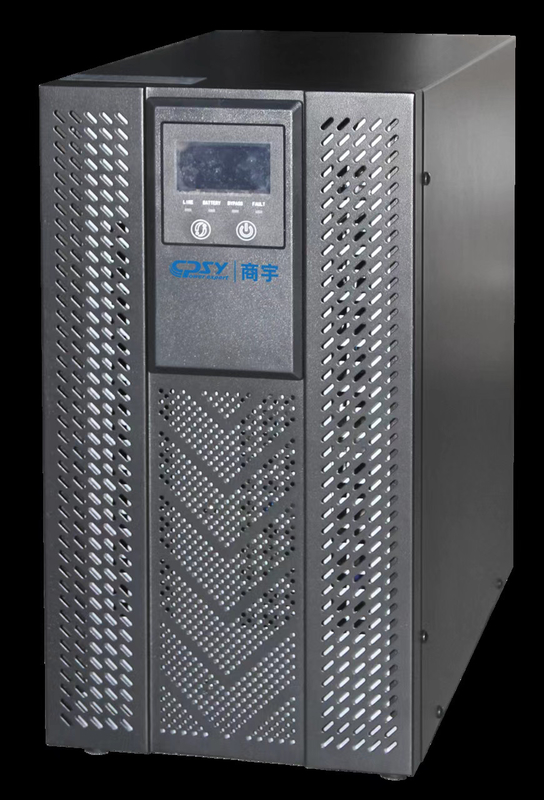

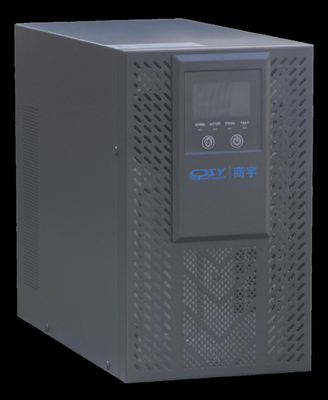

1kVA To 3kVA UPS Power Supply DSP Digital Control HP11 Tower UPS Series
Product Details:
| Brand Name: | MAI&T |
| Certification: | CE |
| Model Number: | HP11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Delivery Time: | 15-30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 2000 |
|
Detail Information |
|||
| Model: | HP1101B | Capacity: | 1000 VA / 900 W |
|---|---|---|---|
| Voltage Range: | 110 - 300 VAC (Auto Sensing) | PowerFactor (nominal Output @ Full Load): | ≧ 0.99 |
| Output Voltage: | 200/208/220/230/240 VAC | Battery Type: | 12V / 9Ah |
| LED / LCD Panel: | UPS Status, Load Level, Battery Level, And Fault Conditions | Waveform (Batt. Mode): | Pure Sinewave |
| High Light: | 3kVA UPS Power Supply,DSP Digital Control UPS Power Supply,DSP Digital Control Tower UPS |
||
Product Description
UPS Power Protection Solutions
In modern medical treatment, UPS power supply has become a necessary equipment. UPS power supply provides reliable
power guarantee for medical facilities and ensures the stable operation of medical equipment. In medical facilities, UPS power
supply could also meet the power requirements for other applications, including emergency power supply, reducing equipment
failure rate, protecting important data, and improving equipment service life, etc
UPS power supply guarantees the stability and reliability of medical facilities, while ensuring continuous power supply in emergency
situations. By fifiltering electric energy, reducing cable interference and power clutter, the equipment runs more stably and smoothly.
Ultimately, UPS power will help extend the life of related equipment and protect equipment from voltage flfluctuations and distur
bances
HP11 Tower UPS series - from 1kVA to 3kVA
HP11 series 1-3kVA adopts DSP digital control technology, which could solve 9 major power problems (mains powerfailure, voltage sag, surge, undervoltage, overvoltage,electronic interference, frequency flfluctuation, transient,
harmonic distortion) and could further improve the adapt ptability and reliability of the product, meanwhile which provides stable and reliable protection for user equipment and UPS itself.
Features:
● Advanced work mode DSP digital control Technology, high performance.
● Comprehensive and reliable, it can effffectively solve 9 power problems such as power failure, surge, transient, spike, etc.
● The design of optimizing battery pack 1KVA-24VDC/36VDC(optional), 2KVA-48VDC/72VDC(optional) and 3KVA-72/96 VDC
(optional).
● Function of the charger extension charging current is 1-4A, support extended to 6A.
● More value-added services it can extended warranty service to 3 years, free OEM design service, consulting service, training
service.
● Strong adaptability to environment overload capacity is 120%.
● Intelligent management RS232/USB are optional.
● Overload capacity: 105%-125%, 1mins; load>125%, 30s turn to bypass output ; load>150%, 300ms turn offff.
For small analyzers, we recommend a solution of 15 mins power-on time. If longer power-on time is required or more devices
need to be connected to the UPS, please email to the sales person to get a customized model.
