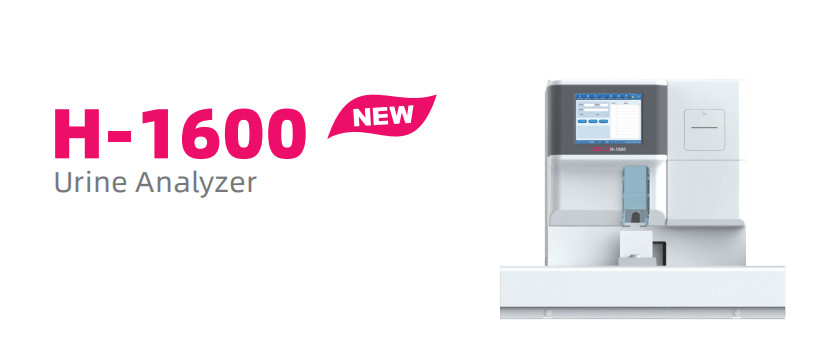

Automatic Portable Urine Analyzer Multi Channel Clinical H-1600 Fully Automatic Urine Analyzer
Product Details:
| Place of Origin: | Jilin, China |
| Brand Name: | DIRUI |
| Certification: | ISO13485,CE |
| Model Number: | H-1600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | 100 Set/Sets per Month |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T |
|
Detail Information |
|||
| Type: | Urine Analysis System | Model Number: | H-1600 |
|---|---|---|---|
| Instrument Classification: | Class II | Product Name: | H-1600 Urine Analyzer |
| Throughput: | 240 Samples/hour | Place Of Origin: | Jilin, China |
| Volume Of Strip Bin: | 300 Strips | Sample Type: | Urine |
Product Description
Automatic Portable Urine Analyzer Multi Channel Clinical H-1600 Fully Automatic Urine Analyzer
|
TECHNICAL PARAMETERS
|
|
|
Test principle
|
Test principle of chemistry items: Photoelectric colorimetry.
Test principle of physical and chemical items: Refraction method, transmittance absorbance.
|
|
Test items
|
Urobilinogen (UBG), bilirubin (BIL), ketone body (KET), blood (BLD), protein (PRO), nitrite (NIT), leukocyte (LEU), glucose (GLU),
pH value (pH), specific gravity (SG), vitamin C (VC) (optional), microalbumin (MALB) (optional), creatinine (Cr) (optional) and urinary calcium (Ca) (optional). |
|
Physical and chemical test items
|
Specific gravity (optional), turbidity (optional), color (optional) and conductivity (optional).
|
|
Test speed
|
240 samples/ hour
|
|
Sample type
|
Urine
|
|
Sample volume
|
Chemistry analysis item: Min. volume: 1.6mL non-centrifuged urine; aspiration volume: about 0.6mL; Chemistry analysis item +
physical and chemical item: Min. volume: 3.0mL non-centrifuged urine; aspiration volume: about 2.0mL. |
|
Volume of sample to be tested
|
60 samples. The volume can be extended to 320 samples if pre-storage tray and reclaiming tray modules are installed.
|
|
Volume of strip bin
|
A single strip bin holds at least 300 strips
|
|
Maximum capacity of waste strip bin
|
400 strips
|
|
Temperature and humidity monitoring function of strip bin
|
It has internal temperature and humidity monitoring function and it will alarm if they exceed the set range.
|
|
Strip carrying stability
|
3 days
|
|

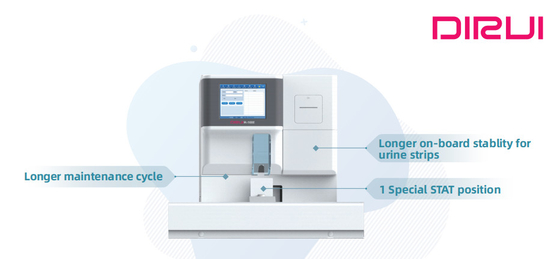

STAT function
|
Special STAT position, available for sample test at any time
|
|
Sample barcode identification
|
Built-in barcode reader (laser), sample barcode can be read automatically An external barcode reader (red light),manual scanning
of barcode (optional). |
|
LIS port
|
Serial port LIS
|
|
Connection with LIS system
|
Bidirectional communication with LIS system is supported
|
|
Test results storage capacity
|
Not less than 100,000 pieces of data
|
|
Weight
|
67kg; 102kg if pre-storage tray and reclaiming tray modules are installed
|
|
Power
|
200 VA
|
|
Size (L×W×H)
|
680 mm×700 mm×590 mm 1360 mm×900 mm×590 mm if pre-storage trayand reclaiming tray modules are installed
|
|
Ambient temperature
|
10 ~30 ℃
|
|
Relative humidity
|
below 70%
|
|
Atmospheric pressure
|
75kPa~106kPa
|
|
Supply voltage
|
100-240V~ 50/60Hz
|
|
Intensity of light
|
prevent direct sunlight
|
Our Advantages
1. 30 years of focus on medical euipment manufacturing.
2. Verified by ISO / CE certification.
3. OEM/ODM services be provided.
4. Excellent after-sales service
5. Fast Shipping: we are a direct manufacturer and have some products in stock,we will arrange delivery within 7-15
working day. (Please confirm with us before order)
6. Shipment: support door to door express service.
7. Logo: Support all kinds of logo customization:Please contact me for OEM customization.
Our Service
1. Help customer analyze product project and provide solution.
2. Provide shipping/delivery information checking service.
3.18 months warranty, all life maintain promise.
4.24 hours online service.
FAQ
Q: Are you a manufacturer or a trading company ?
A: We're professional manufacturer of medical equipment.
Q: Are your products conforming to our standards ?
A: Yes, our products can pass the testings as you require, e.g.: CE,ISO9001,ISO13485
Q: How do you control the quality ?
A: We have perfect QC system , professional product engineers and continuous improvement system.
Q: What’s the product warranty?
A: We offer 18 months guarantee.
